MODE+DETAILS
|
FFT-SPECTRUM
|
AUDIO-SAMPLE
|
1000
Bd BPSK (SERIAL)
(UNIDENTIFIED USER)
|
|
|
4
x 166.7 Bd QPSK (PARALLEL)
(UNID USER VIA SWISSCOM
PRANGINS / BERN RADIO)
|
|
|
|
BUL
DIPLO 39-TONE (PARALLEL)
|
|
|
|
CHINESE
4+4 (PARALLEL)
|
|
|
CHINESE
2400 Bd (SERIAL)
(Continuous mode, MIL-STD
188-110A)
|
|
|
|
CIS
1200 Bd (SERIAL)
|
|
|
|
CIS
640Bd/1280 Bd (SERIAL)
|
|
|
CIS
12x 120 Bd (PARALLEL)
(AT-3004D or AT-3104
TYPE MODEM)
|
|
|
CIS
16x 75 Bd (PARALLEL)
(modified AT-3004D or
AT-3104 TYPE MODEM ?)
|
|
|
CIS
20x 75 Bd (PARALLEL)
(AT-3104 TYPE MODEM)
|
|
|

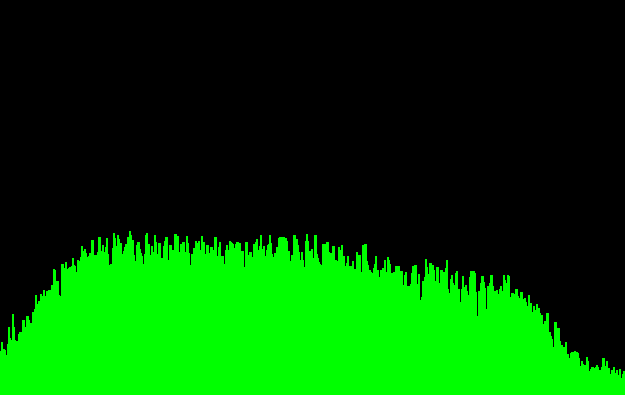

CZECH DIPLO 2400 Bd
(SERIAL)
(Continuous mode, modified
MIL-STD 188-110A)
|
|
|
DIGTRX
8 TONE (PARALLEL)
(EXPERIMENTAL AMATEUR
RADIO MODE)
|
|
|
|
ITALIAN
MIL 1200 Bd (SERIAL)
|
|
|
JAPANESE
NAVY 1500 Bd
WAVEFORM (SERIAL)
|
|
|
JAPANESE
NAVY 16 x 75 Bd
WAVEFORM (PARALLEL)
|
|
|
MIL-STD
188-110B
2400 Bd QAM (SERIAL)
|
|
|
MT63
64-TONE (PARALLEL)
(AMATEUR RADIO MODE)
|
|
|
NATO
STANAG 4285
2400 Bd (SERIAL)
|
|
|
NATO
STANAG 4481
2400 Bd (SERIAL)
|
|
|
NATO
STANAG 4529
1200 Bd (SERIAL)
|
|
|
NORTH
KOREAN DIPLO BPSK (SERIAL)
(phased out?)
|
|
|
OFDM
59-TONE
HYBRID (SERIAL + PARALLEL
+ MFSK)
|
|
|
|

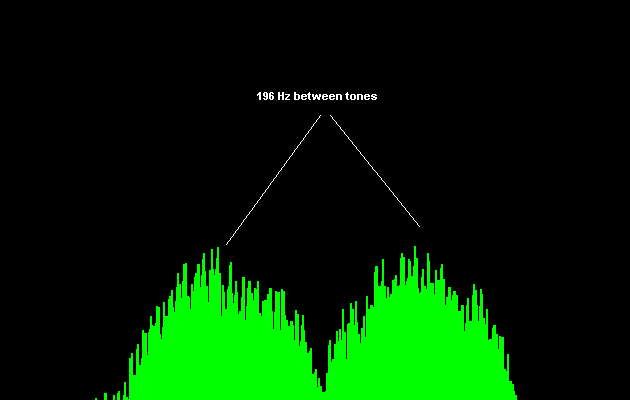

PACTOR-II
FEC (PARALLEL)
|
|
|
PSK
n x 62.5 Bd QPSK (PARALLEL)
(Russian Intelligence
/ experimental mode? / active 2011)
|
|
|
PSK
n x 62.5 Bd QPSK hybrid (PARALLEL)
(Russian Intelligence
/ experimental mode? / active 2013 )
|
|
|
PSK31
(SERIAL)
(AMATEUR RADIO MODE)
|
|
|
PSK63F (SERIAL)
(AMATEUR RADIO MODE)
|
|
|
PSK125
(SERIAL)
(AMATEUR RADIO MODE)
|
|
|
PSK220F
(SERIAL)
(AMATEUR RADIO MODE)
|
|
|
RUS-INTEL 2-TONE PSK
(2x 64 Bd BPSK BROADCAST)
|
|
|
RUSSIAN
45-TONE HDR
OFDM MODEM (PARALLEL)
|
|
|
RUSSIAN
60-TONE HDR
OFDM MODEM (PARALLEL)
|
|
|
RUSSIAN
93-TONE HDR
OFDM MODEM (PARALLEL)
|
|
|
RUSSIAN
56/112-TONE HDR
OFDM MODEM (PARALLEL)
|
|
|
RUSSIAN
128-TONE OFDM
WAVEFORM WITH 3 kHz BW (PARALLEL)
|
|
|
RUSSIAN
128-TONE OFDM
WAVEFORM WITH 6 kHz BW (PARALLEL)
|
|
|
RUSSIAN
DIPLOMATIC OFDM
WAVEFORM "SERDOLIK-SYSTEM"
** in service since appx.
mid to late 1998 **
|
|
|
THALES
TRC-1752
+ SPECIAL PREAMBLE (SERIAL)
|
|
|
UK
MIL/GOV 51-TONE
OFDM WAVEFORM (PARALLEL)
(MODIFIED WINDRM WAVEFORM)
|
|
|
USAF
2400 Bd (SERIAL)
(MIL-STD 188-110A compatible)
|
|
|
|
US-INTEL
(PARALLEL)
|
|
|
US-INTEL
260.41 Bd BPSK (SERIAL)
(UHF-SATCOM only)
|
|
|
WINDRM
51-TONE COFDM WAVEFORM
(AMATEUR RADIO MODE)
|
|
|
YUG DIPLO 16-TONE (PARALLEL)
(phased out)
|
|
|
|
MODE+DETAILS
|
FFT-SPECTRUM
|
AUDIO-SAMPLE
|
22-TONE
"SkyOFDM" OFDM
WAVEFORM (PARALLEL)
|
|
|
2400
Bd QPSK
DATA LINK SYSTEM (SERIAL)
|
|
|
27-TONE
PSK "DIGISPEECH" WAVEFORM
by G3PLX (PARALLEL)
|
|
|
28-TONE
"SkyOFDM" OFDM
WAVEFORM (PARALLEL)
|
|
|
AUSTRIAN
MILITARY MODIFIED MIL-STD
188-110B 2400 Bd WAVEFORM
(SERIAL)
|
|
|
CHINESE
MIL
18-TONE (PARALLEL)
|
|
|
CHINESE
MIL 2400 Bd
TACTICAL DATALINK (SERIAL)
(MODIFIED MIL-STD 188-110B
SERIAL TONE)
|
|
|
CHINESE
MIL 30-TONE
TACTICAL DATALINK (PARALLEL)
|
|
|
CHINESE
MIL HYBRID
2400 Bd BPSK (SERIAL)
|
|
|
CHINESE
MILITARY
39-TONE (PARALLEL)
|
|
|
CZECH
2400 Bd (SERIAL)
(Burst mode, HFCOM2 ARQ,
MIL-STD 188-110A)
|
|
|
CLOVER
4-TONE (SEQUENTIAL)
|
|
|
CLOVER-2000
/ XCLOVER
8-TONE (SEQUENTIAL)
|
|
|
CODAN
16-TONE (PARALLEL)
|
|
|
CODAN
80 Bd
BPSK CHIRP
|
|
|
EADS/TELEFUNKEN
RACOMS
FARCOS 1800 Bd BURST (SERIAL)
|
|
|
EADS/TELEFUNKEN
RACOMS
MAHRS 2400 Bd BURST (SERIAL)
|
|
|
GLOBE
WIRELESS SINGLE
TONE ARQ SYSTEM (SERIAL)
|
|
|
EGYPTIAN
NAVY
2400 Bd BURST (SERIAL)
|
|
|
GLOBE WIRELESS 32-TONE
OFDM ARQ SYSTEM
|
|
|
HARRIS
ADVANCED HF
DATA SYSTEM (SERIAL)
(unconfirmed!)
|
|
|
"HFD+VL"
73-CARRIER
OFDM-CDMA WAVEFORM (PARALLEL)
(experimental waveform
developed by University of Las Palmas)
|
|
|
HFDL
ARINC GLOBALink
1800Bd (SERIAL)
|
|
|
IRANIAN
MULTIPLE BAUDRATE
QPSK WAVEFORM (SERIAL)
|
|
|
ISRAELI
NAVY 2400Bd
PSK WAVEFORM (SERIAL)
|
|
|
LINK
11 1364 bps (PARALLEL)
(MIL-STD 188-203-1A /TADIL-A)
|
|
|
LINK 11 2250 bps (PARALLEL)
(MIL-STD 188-203-1A /TADIL-A)
|
|
|
LINK 11 SERIAL TONE
WAVEFORM (SLEW/LESW)
|
|
|
MARCONI SCIMITAR-H
25-TONE VERSION 1/NON-ECCM
(PARALLEL)
|
|
|
MARCONI
SCIMITAR-H 25-TONE
VERSION 2/ECCM CAPABILITIES
(PARALLEL)
|
|
|
MIL-STD
188-110A/B
2400 Bd (SERIAL)
|
|
|
MIL-STD
188-110A/B App. A
16-TONE (PARALLEL)
|
|
|
MIL-STD
188-110A/B App. B
39-TONE (PARALLEL)
|
|
|
MIL-STD
188-110B App. C
2400 Bd (SERIAL)
|
|
|
MIL-STD
188-141B App. C
3G HF PROTOCOL SUITE (SERIAL)
|
|
|
OFDM
42/48-TONE
MODEM (PARALLEL)
|
|
|
|
PACTOR-II
ARQ (PARALLEL)
|
|
|
PACTOR-III
ARQ
2/6/14/16/18-TONE (PARALLEL)
|
|
|
PACTOR-III ARQ 12-TONE
VARIANT (PARALLEL)
|
|
|
PACTOR-IV
ARQ
(CHIRP + SPREAD + SERIAL)
|
|
|
PSK250
(SERIAL)
(AMATEUR RADIO MODE)
|
|
|
PSK500
(SERIAL)
(AMATEUR RADIO MODE)
|
|
|
Q15X25
15-TONE (PARALLEL)
(AMATEUR RADIO MODE)
|
|
|
RACAL
/ THALES PANTHER-H
INTELLIGENT FREQ. HOPPER
(SERIAL)
|
|
|
RACAL
SKYFAX-HSM
RC5000H-SERIES (SERIAL)
|
|
|
RFSM
2000 Bd (SERIAL)
(modified MIL-STD
188-110A)
|
|
|
RFSM
2400 Bd (SERIAL)
(modified MIL-STD
188-110A/B)
|
|
|
ROBUST
PACKET RADIO 8-TONE
OFDM WAVEFORM (PARALLEL)
|
|
|
ROCKWELL-COLLINS
Q9600 HDR MODEM (SERIAL)
(MIL-STD 188-110B App.
C compatible)
|
|
|
ROCKWELL-COLLINS
COMMERCIAL AIRBORNE WAVEFORM
(SERIAL)
(2.4 kHz narrowband waveform)
|
|
|
ROHDE
& SCHWARZ 2400 Bd
PROPRIETARY WAVEFORM (SERIAL)
|
|
|
ROHDE
& SCHWARZ SECOM-H
FREQUENCY HOPPING WAVEFORM
(SERIAL)
|
|
|
RUSSIAN
3000 Bd
BURST WAVEFORM (SERIAL)
|
|
|
STANAG
4197 16/39-TONE
MODEM (PARALLEL)
|
|
|
STANAG
4285 ARQ BURST WITH
STANAG 5066 PROTCOL (SERIAL)
|
|
|
STANAG
4538
BW6 WAVEFORM (SERIAL)
|
|
|
THALES
SYSTÈME 3000
BURST ARQ
(SERIAL)
|
|
|
THALES
SYSTÈME 3000
BURST FH PSK (SERIAL)
|
|
|
VDL
MODE 2 D8PSK
(VHF only!)
|
|
|
WINMOR
HYBRID
2-TONE PSK/4FSK WAVEFORM
(AMATEUR RADIO MODE)
|
|
|
WINMOR
HYBRID
8-TONE PSK/4FSK WAVEFORM
(AMATEUR RADIO MODE)
|
|
|
YUG
DIPLO 20-TONE
20x75 Bd (PARALLEL)
|
|
|
YUG MIL 20-TONE
