CIS 16-TONE PSK MODEM

MODIFIED AT-3004D / AT-3104 type modem (?) / 16 x 75Bd

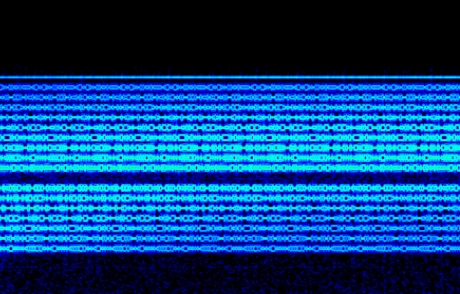

FFT-Spectrum vs. time, frequency and signal intensity (modem sending tfc.)

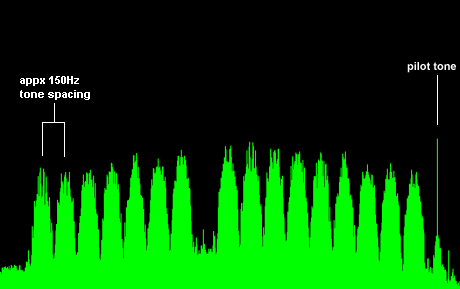

FFT-Spectrum vs. time, frequency and signal intensity (modem sending tfc.)

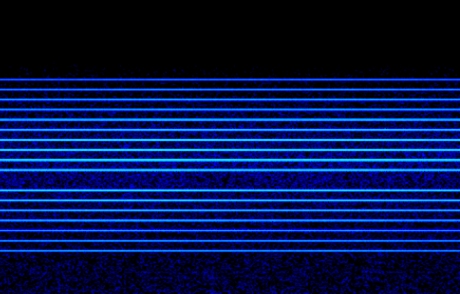

FFT-Spectrum vs. time, frequency and signal intensity (modem in stby.)

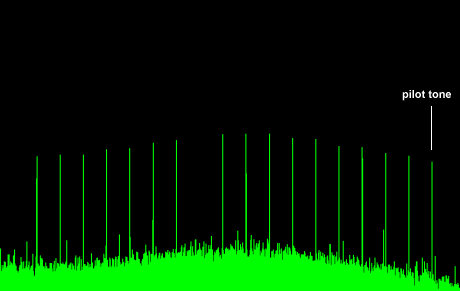

FFT-Spectrum vs. frequency and signal intensity (modem in stby.)

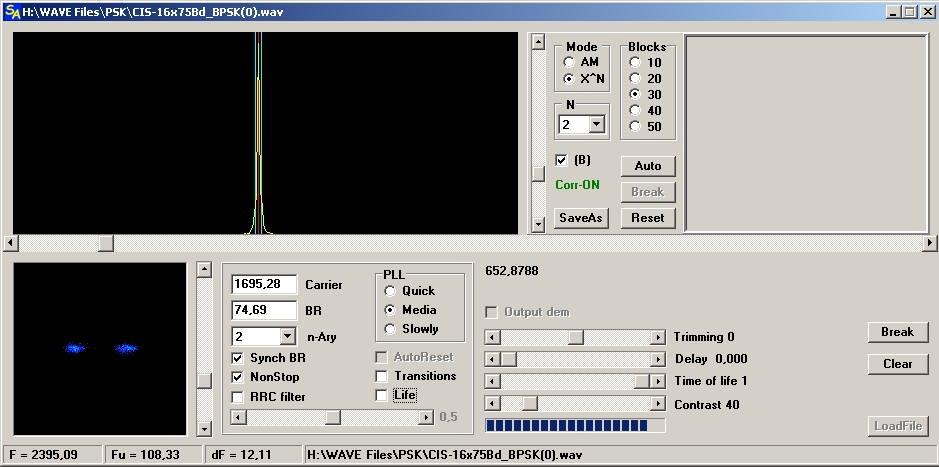

Phase Plane Spectrum of a single 75Bd BPSK channel
