HF DATA LINK / HFDL

(1800 Bd / 8PSK, QPSK or BPSK / SERIAL)

FFT-SPECTRA

---

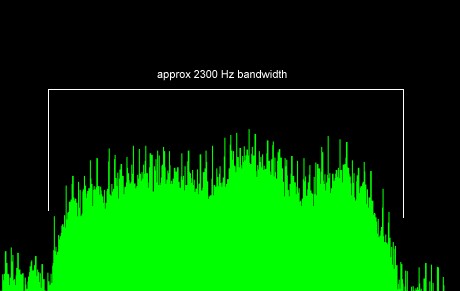

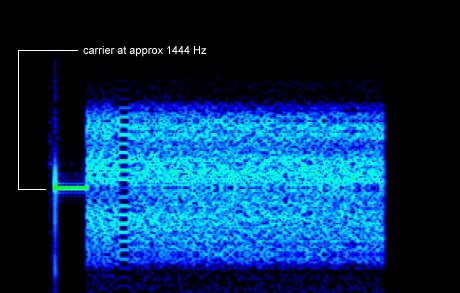

• FFT-Spectrum versus time, frequency and signal intensity

• FFT-Spectrum versus frequency and signal intensity

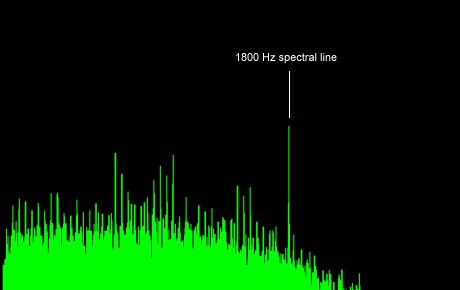

• FFT-Spectrum using the "AM-method"

• Phase Plane Spectrum of an 8PSK signal

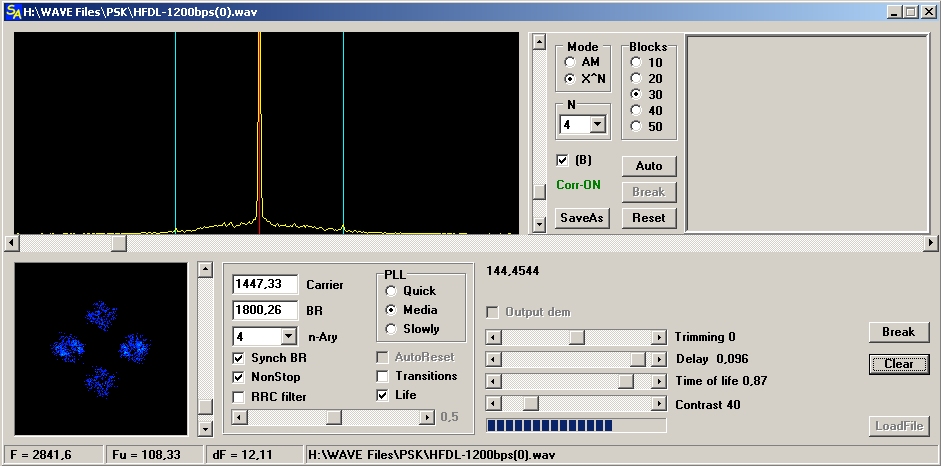

• Phase Plane Spectrum of a 1200 bps/QPSK signal



• Phase Plane Spectrum of a 300bps/BPSK signal

---
