BPSK SERIAL TONE MODEM

FFT-SPECTRA

---

Depending on the symbol rate, the Korean PSK system shows a different FFT-spectrum.
What all Baudrates have in common is a very wide and distorted signal, that tends to cause
splatter on frequencies way above and below the actual transmission channel.

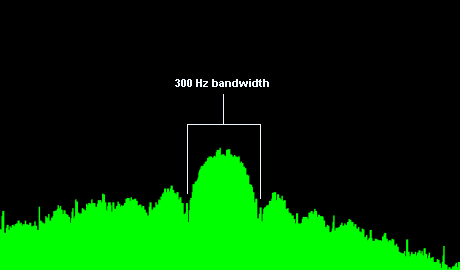

• 150 Bd spectrum using SSB setting

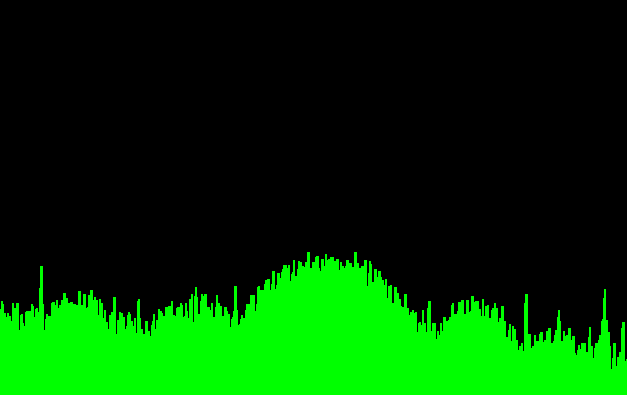

• 300 Bd spectrum using SSB setting

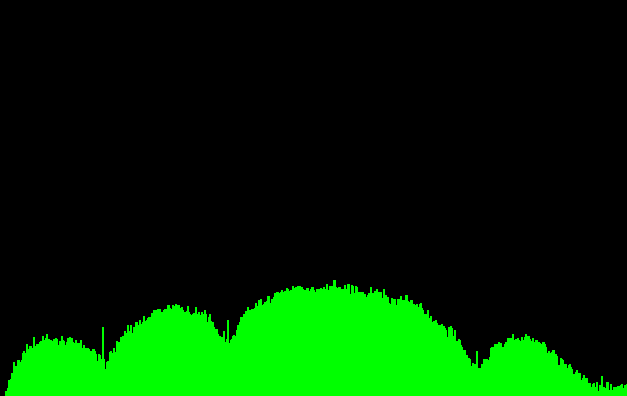

• 600 Bd spectrum using SSB setting

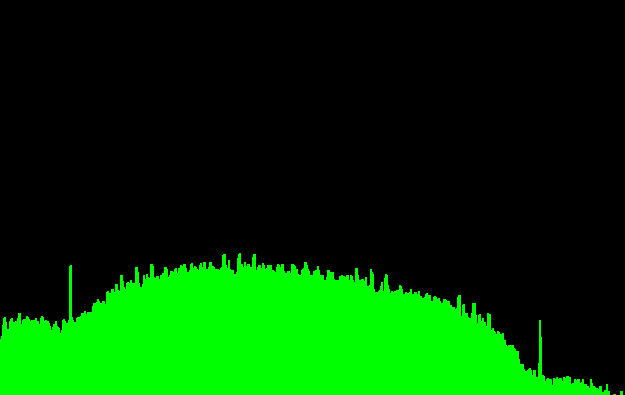

• 1200 Bd spectrum using SSB setting

The Baudrate can easily be determined by decoding the signal in AM and running the RX-
output into an FFT-analyzer.

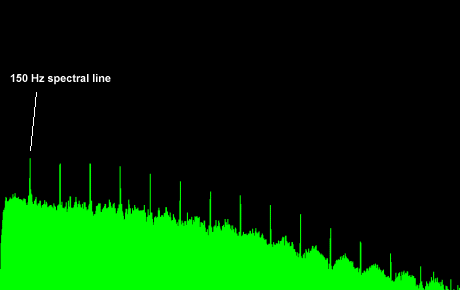

• 150 Bd spectrum using the "AM-method"

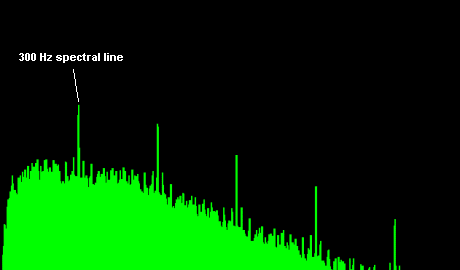

• 300 Bd spectrum using the "AM-method"

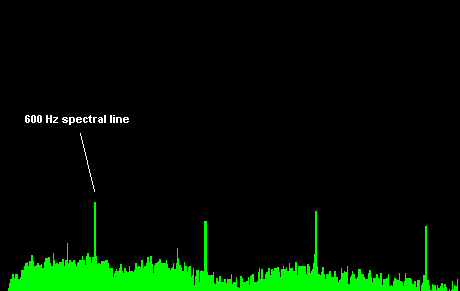

• 600 Bd spectrum using the "AM-method"

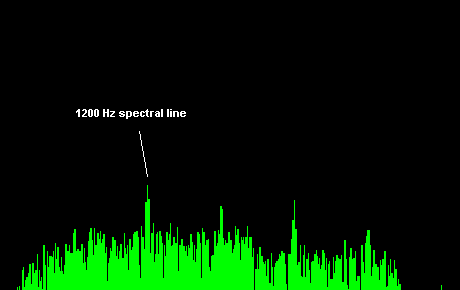

• 1200 Bd spectrum using the "AM-method"

---
