ROHDE & SCHWARZ SECOM-H

SLOW FREQUENCY HOPPING WAVEFORM

(2400 Bd / SERIAL TONE / QPSK / ~ 9 hops per second)

---

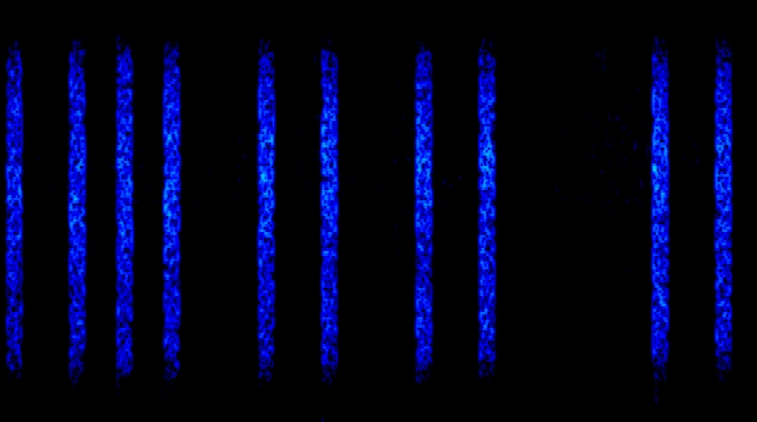

• FFT-Spectrum versus time, frequency and signal intensity

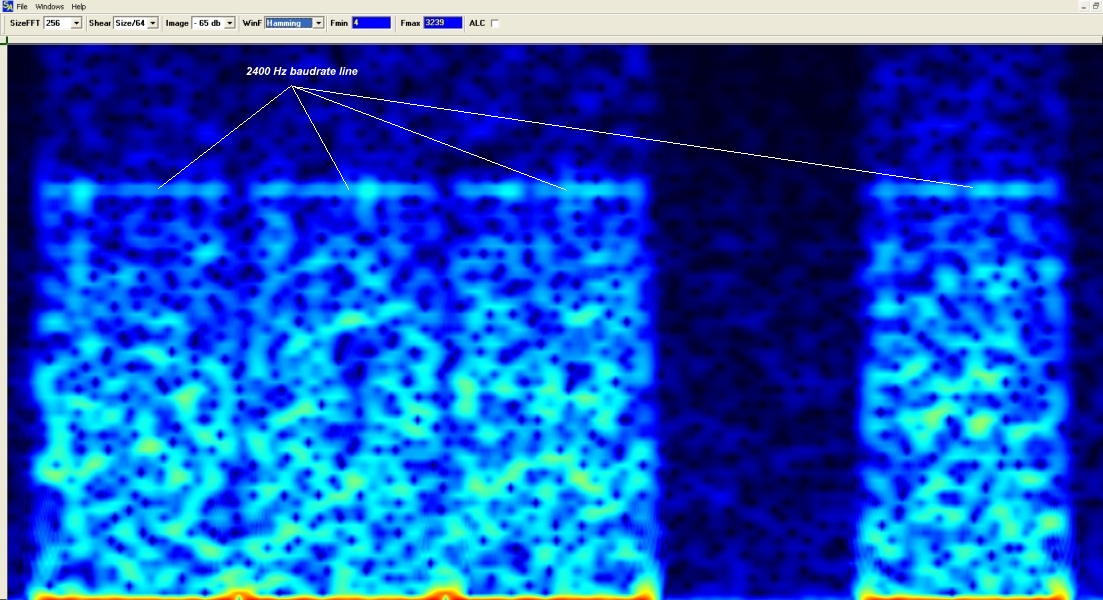

• FFT-Spectrum with 2400 Hz baudrate line

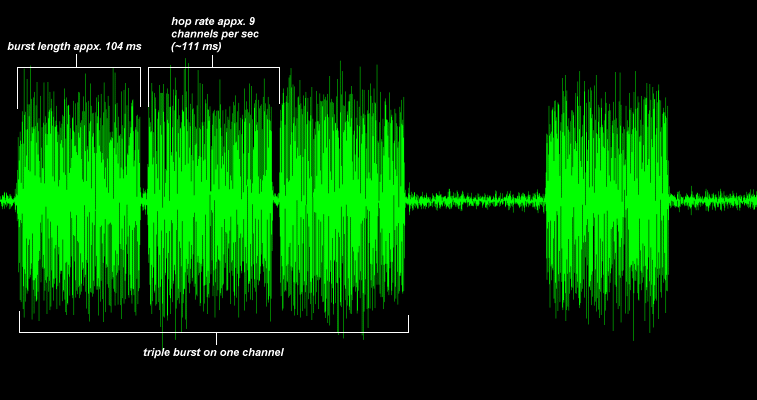

• FFT-Spectrum versus timing and signal intensity

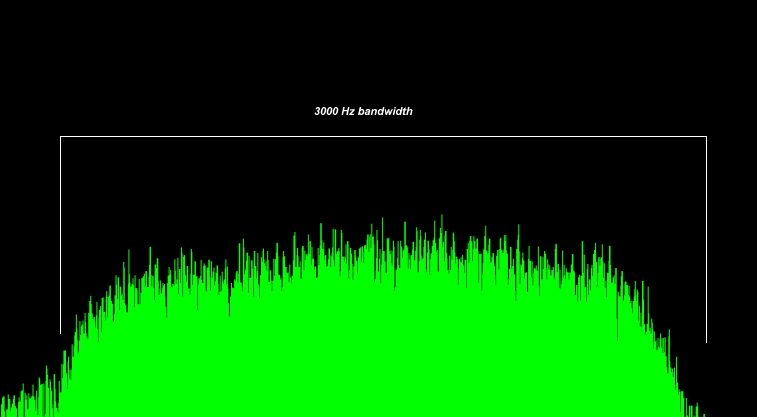

• FFT-Spectrum versus frequency and signal intensity (aggregated)

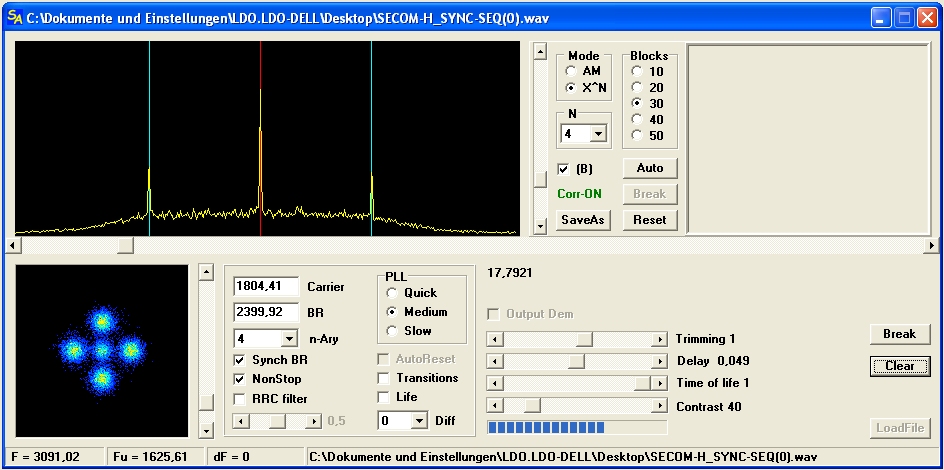

• Phase Plane Spectrum

---
