1000 Bd BPSK WAVEFORM (SERIAL)
(Unidentified User / possibly Russian origin)
FFT-SPECTRA
-
FFT-Spectrum versus time, frequency and
signal intensity (complete transmission with 4-FSK
call-up and PSK tfc. sequence)
-

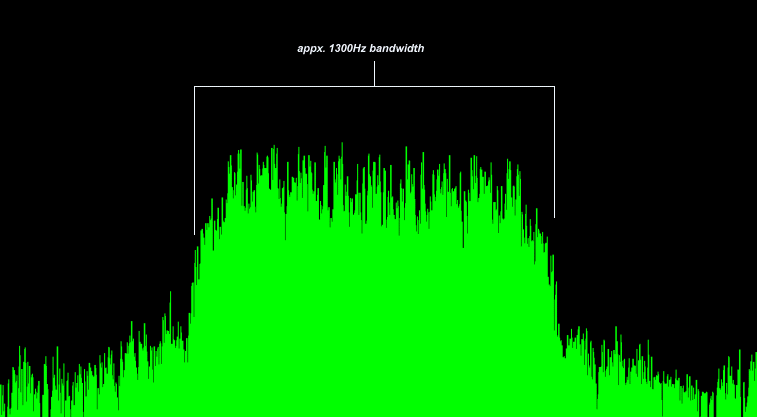

FFT-Spectrum versus frequency and signal
intensity
-

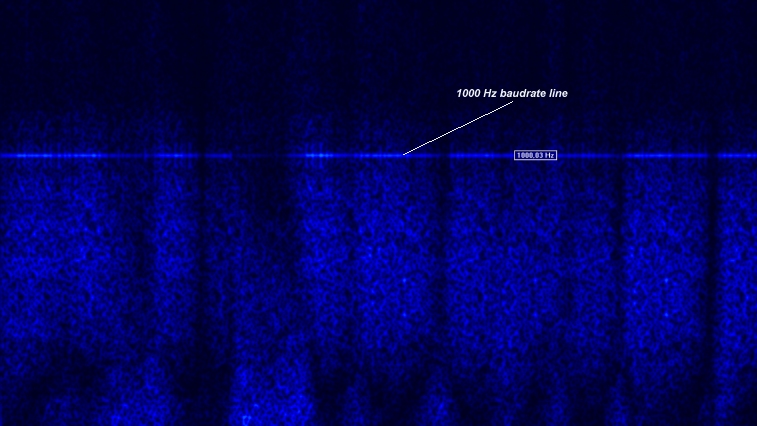

Baudrate measurement showing the spectral
line
