RFSM 2400Bd SERIAL TONE

(MODIFIED MIL-STD 188-110A/B SERIAL TONE WAVEFORM)

FFT-SPECTRA

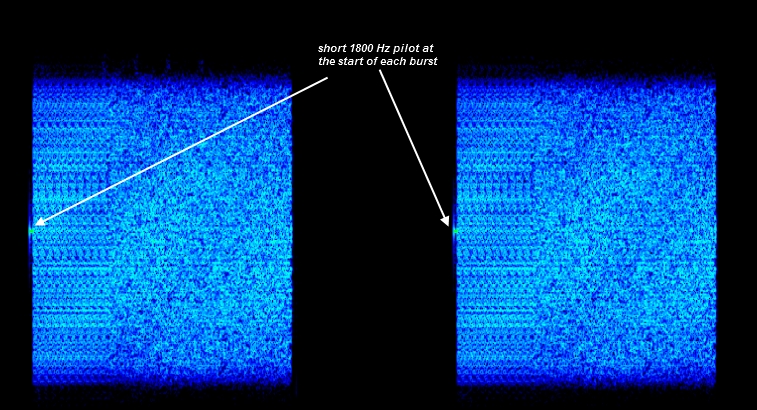

FFT-spectrum vs. time, frequency and signal intensity

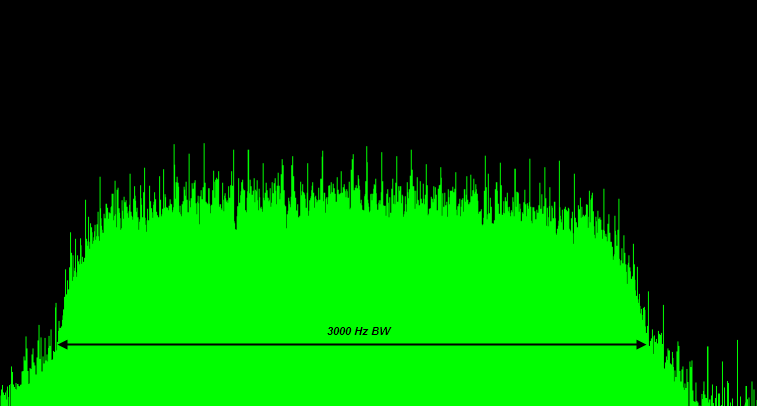

FFT-Spectrum vs. frequency and signal intensity

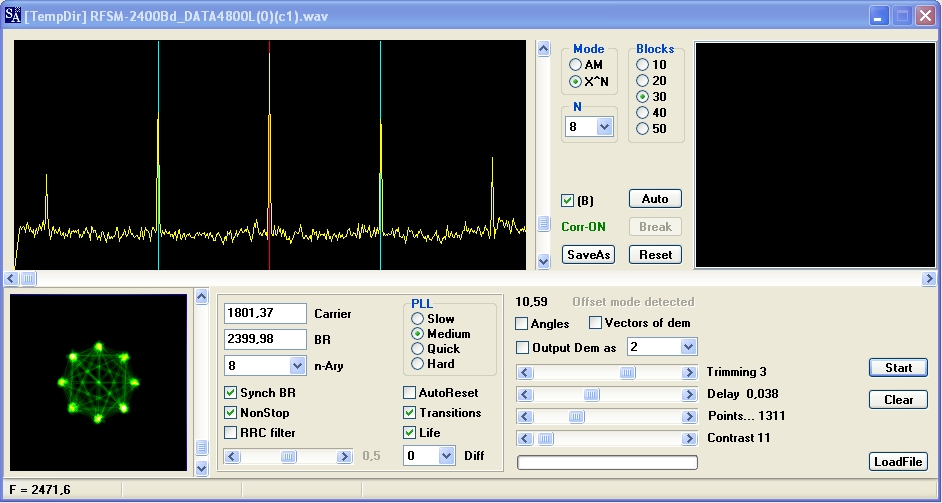

Phase Plane Spectrum of the waveform using 4800 bps and long interleaving (8-PSK)

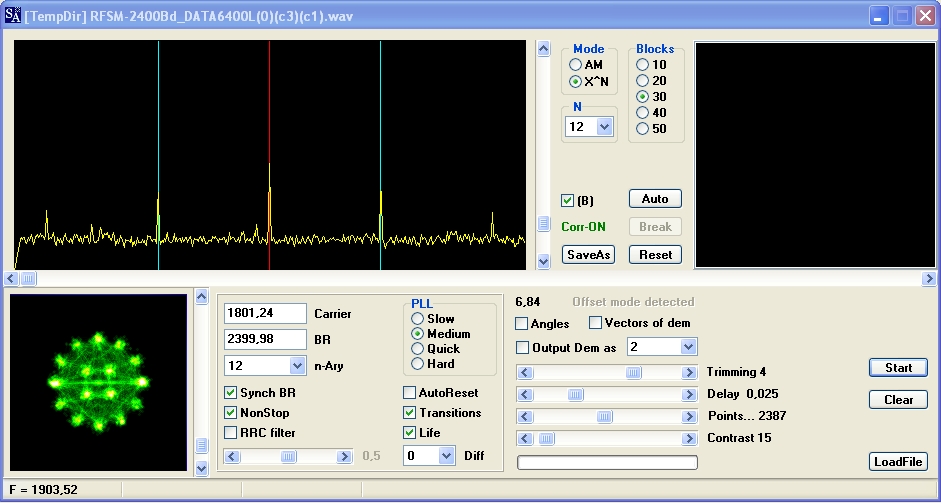

Phase Plane Spectrum of the waveform using 6800 bps and long interleaving (16-QAM)
