JAPANESE NAVY 1500 Bd QPSK
SERIAL TONE WAVEFORM
(also known as "The Slot Machine"
or "XSL" in the hobbyist and SWL community)
FFT-SPECTRA
-

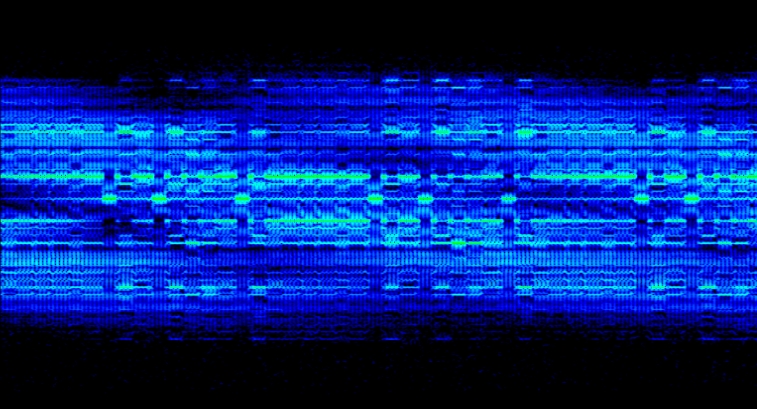

FFT-Spectrum versus time, frequency and
signal intensity (idle state)
-

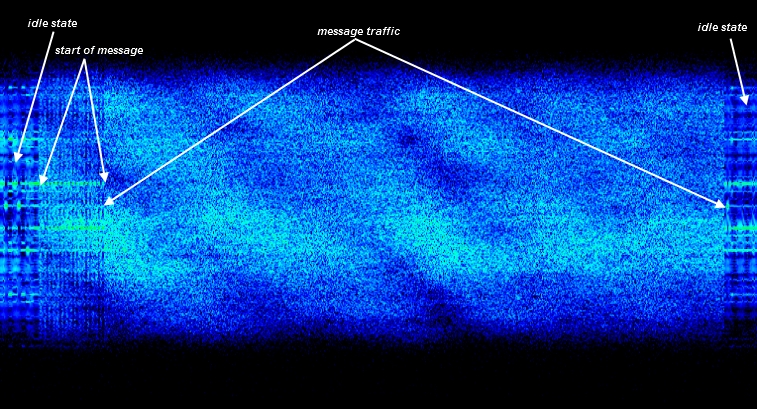

FFT-Spectrum versus time, frequency and
signal intensity (idle state + tfc state + idle state)
-

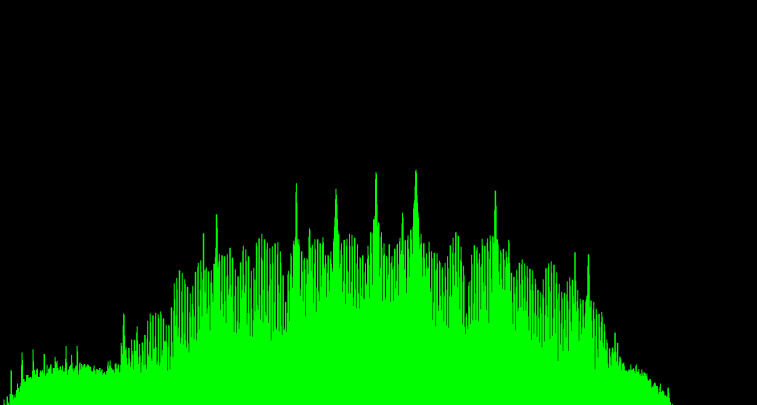

FFT-Spectrum versus frequency and signal
intensity (idle state)
-

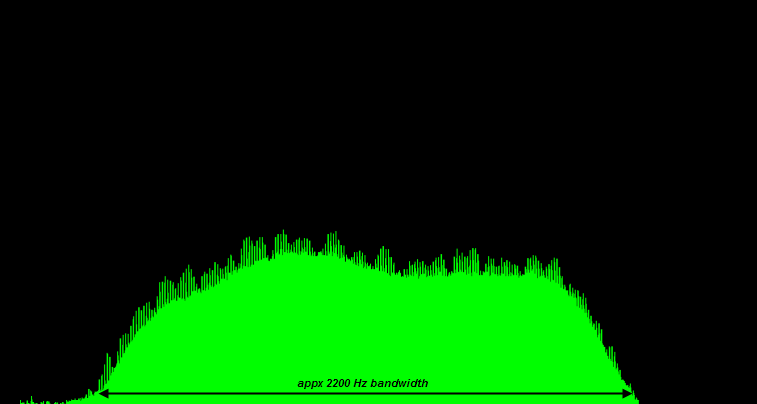

FFT-Spectrum versus frequency and signal
intensity (traffic state)
-

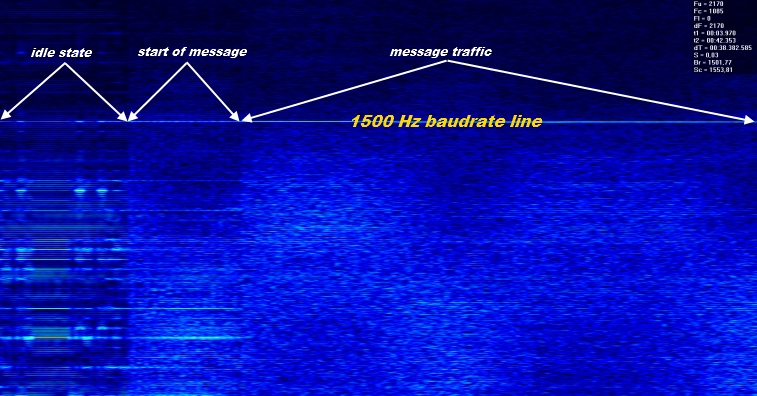

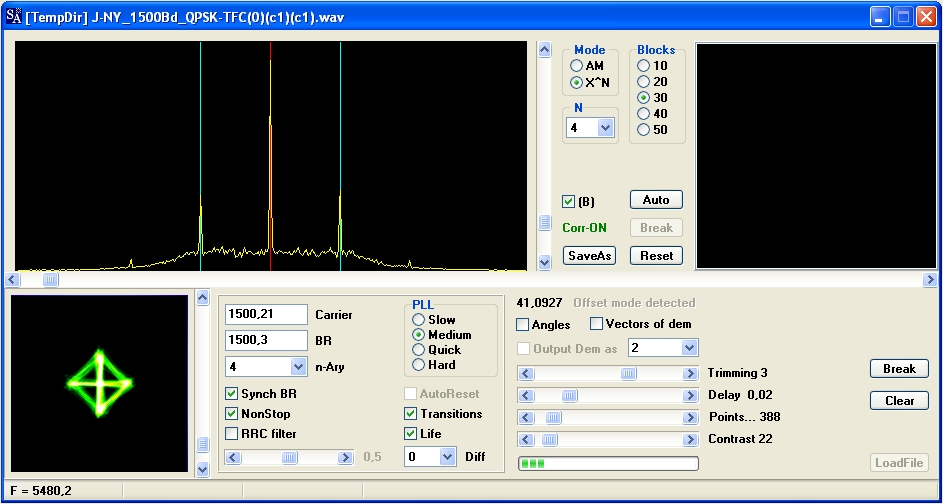

Baudrate measurement showing the spectral
line (idle state + tfc state)
