ROCKWELL COLLINS
COMMERCIAL AIRBORNE WAVEFORM
(implemented in the Q960x modem series - originally
from IP Unwired)
FFT-SPECTRA
-

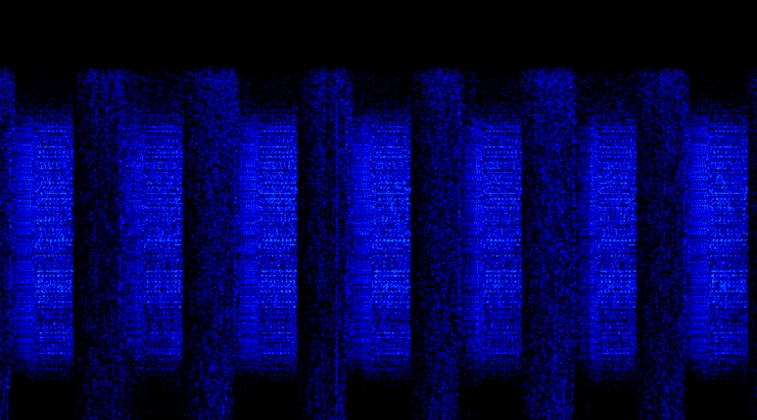

FFT-Spectrum versus time, signal intensity
and frequency
-

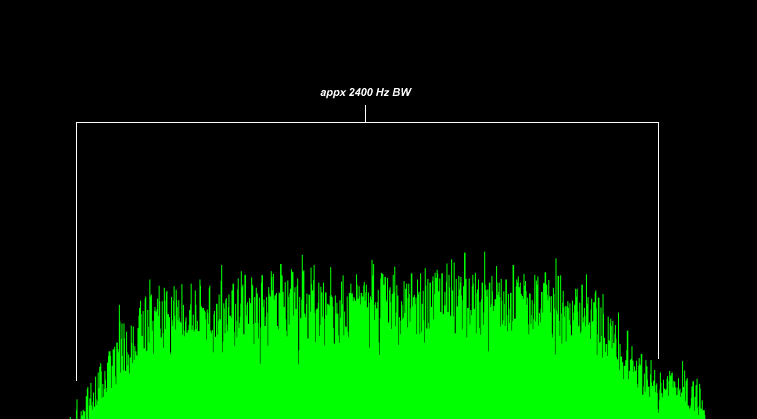

FFT-Spectrum versus frequency and signal
intensity
-

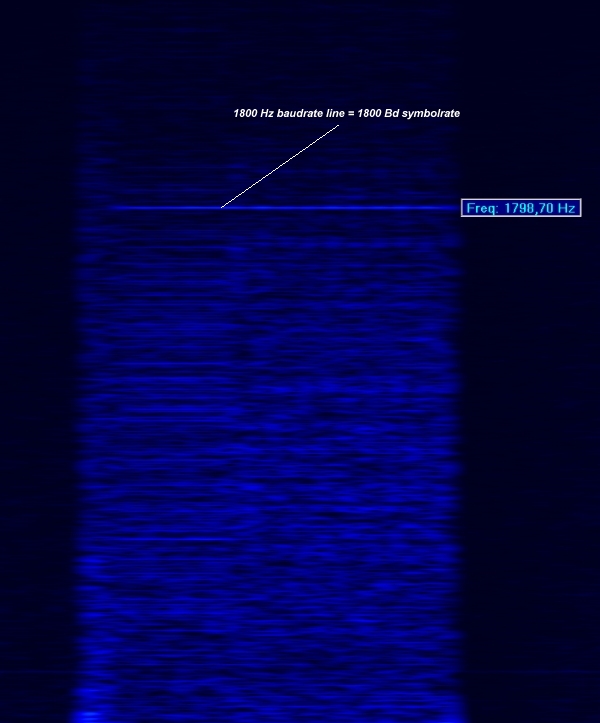

Baudrate measurement showing the baudrate
line
-

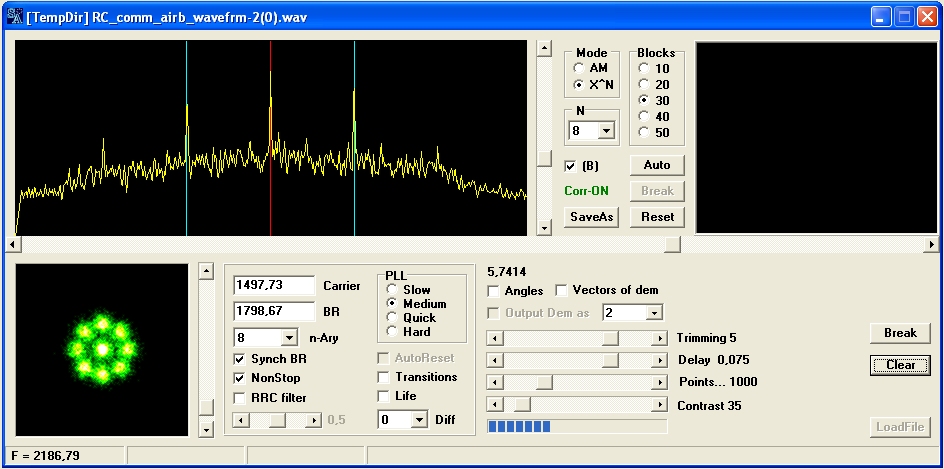

Phase Plane Spectrum of the waveform using
coded 8PSK
