RUSSIAN n x PSK 62.5 Bd

HYBRID PSK SYSTEM

(Russian intelligence / probably an experimental mode / active May 2013)

FFT-SPECTRA

---

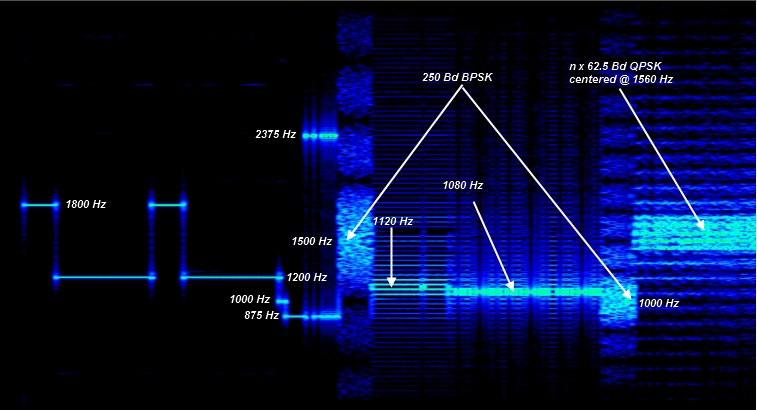

• FFT-Spectrum versus time, frequency and signal intensity (start of message preamble)

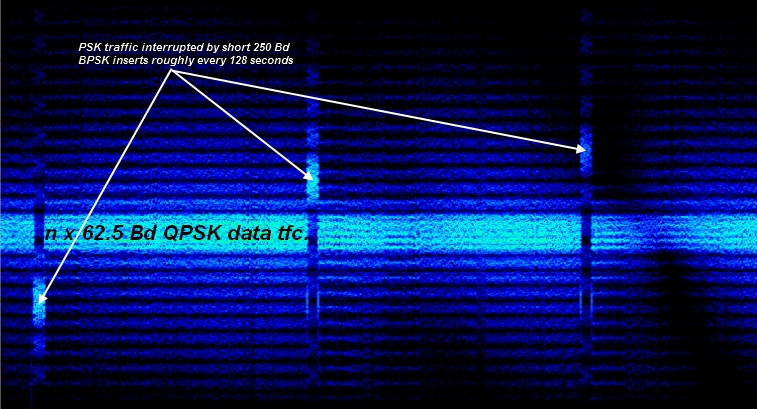

• FFT-Spectrum versus time, frequency and signal intensity (station sending PSK traffic)

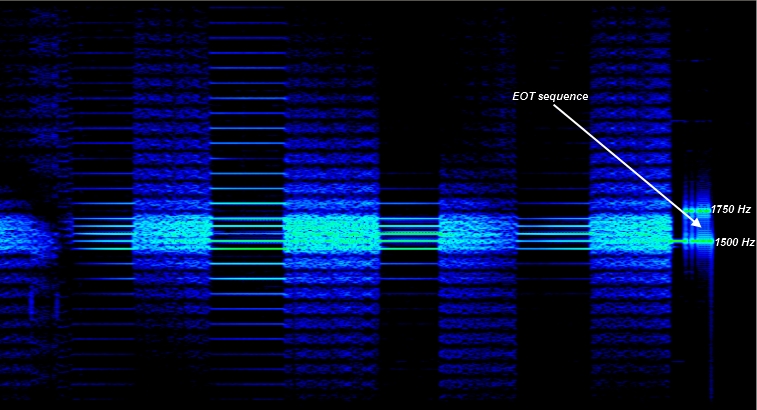

• FFT-Spectrum versus time, frequency and signal intensity (end of traffic sequence)

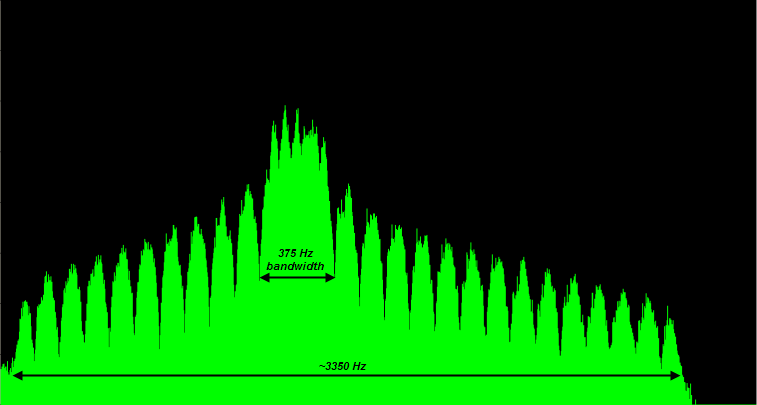

• FFT-Spectrum versus frequency and signal intensity

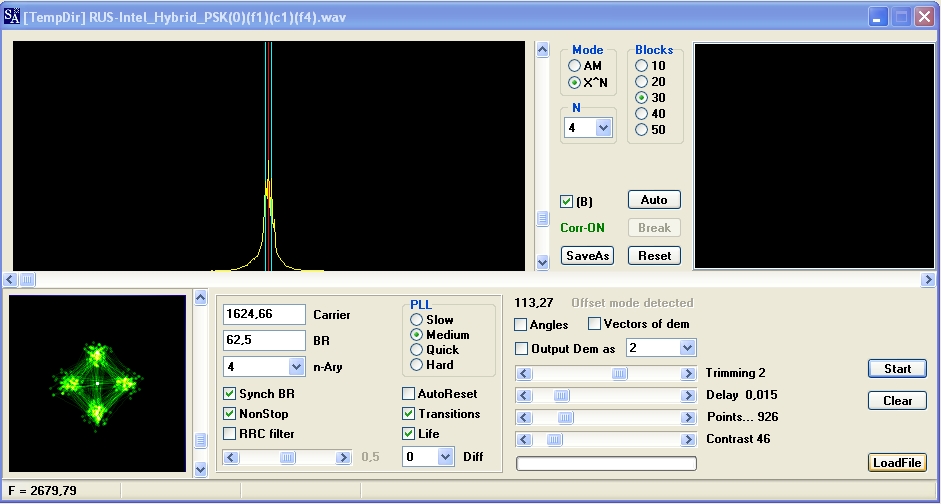

• Phase Plane Spectrum of a single 62.5 Bd data tone

---
