22-TONE "SkyOFDM" WAVEFORM

(22-TONE 48.4 Bd / BPSK and QPSK mixed)

FFT-SPECTRA

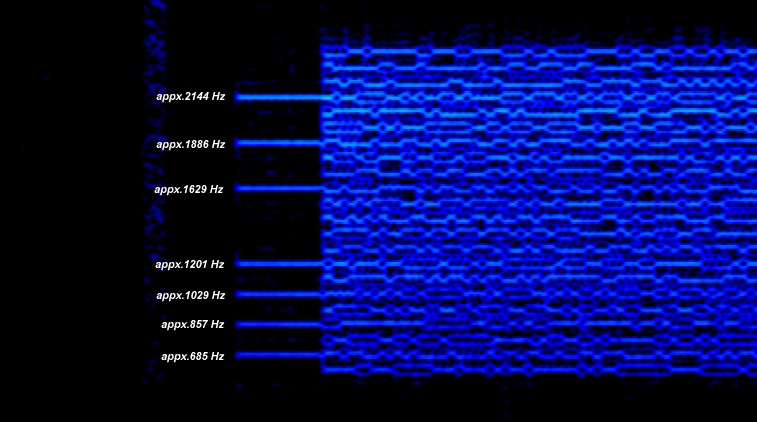

FFT-spectrum vs. time, frequency and signal intensity (modem preamble)

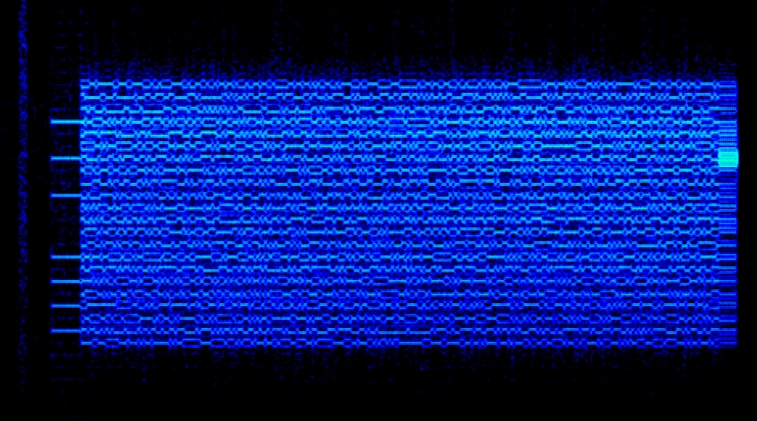

FFT-spectrum vs. time, frequency and signal intensity (complete burst)

FFT-Spectrum vs. time and signal intensity

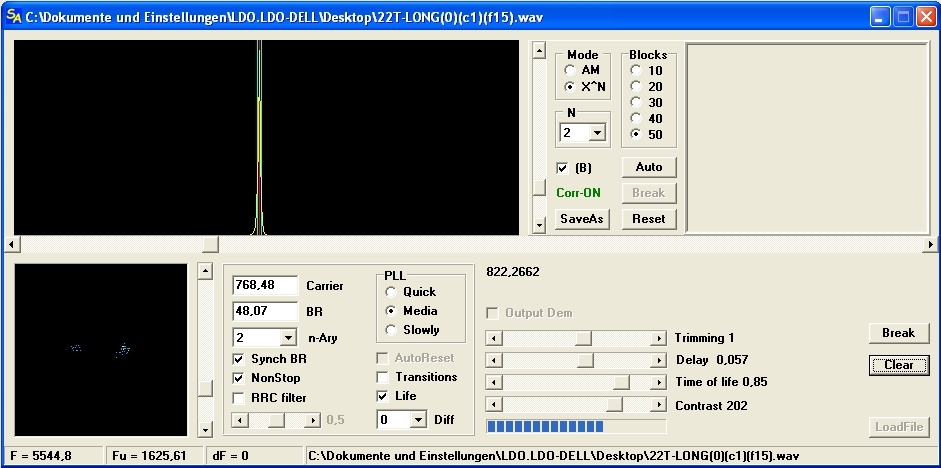

Phase Plane Spectrum (BPSK)

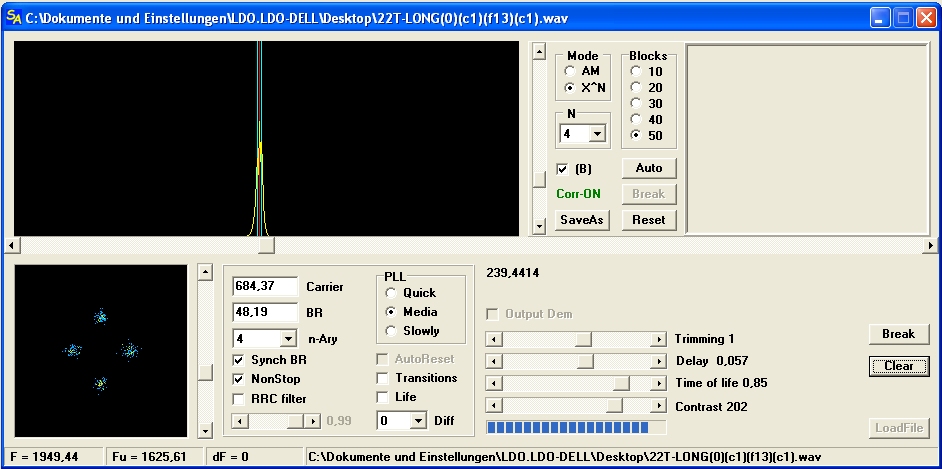

Phase Plane Spectrum (QPSK)
