USAF 2400 Bd SERIAL MODEM

(MIL-STD 188-110A COMPATIBLE / KG-84 ENCRYPTED)

---

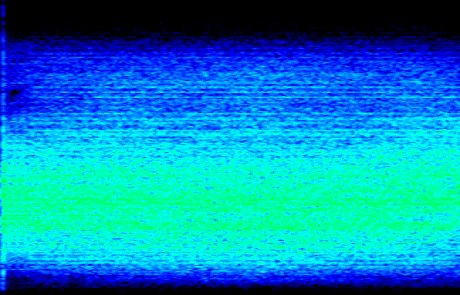

• FFT-Spectrum versus time and frequency

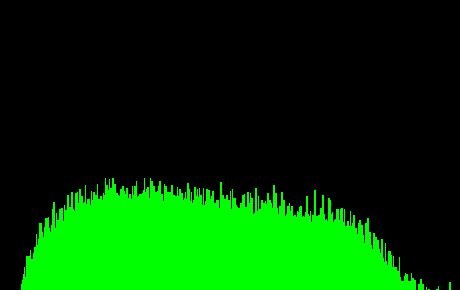

• FFT-Spectrum versus frequency and signal intensity

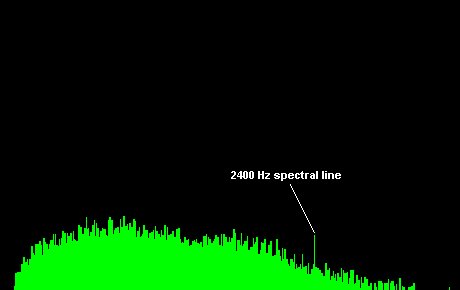

• FFT-Spectrum versus frequency and signal intensity using the "AM-method"

(The AM-method enables the baudrate to be easily determined by decoding the signal in AM and running the RX-output into an FFT-analyzer)

---
