WINMOR 2-TONE 93.75 Bd PSK / 4-FSK HYBRID WAVEFORM

(AMATEUR RADIO MODE)

check out related 8-TONE PSK, 2 x 4-FSK and 8 x 4-FSK waveforms as well

FFT-SPECTRA

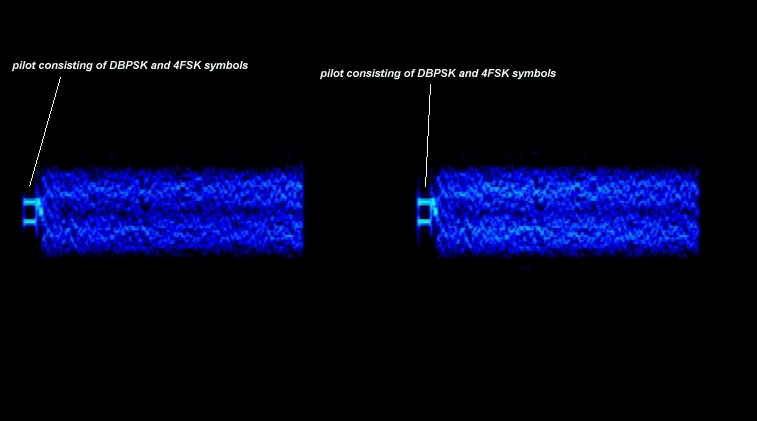

FFT-Spectrum versus time, frequency and signal intensity

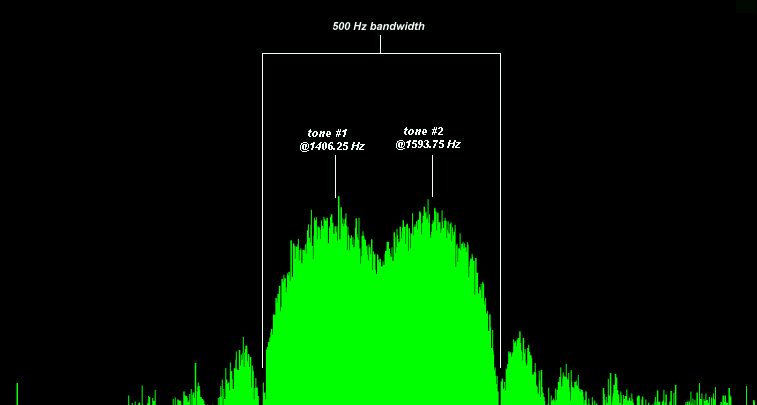

FFT-Spectrum versus frequency and signal intensity

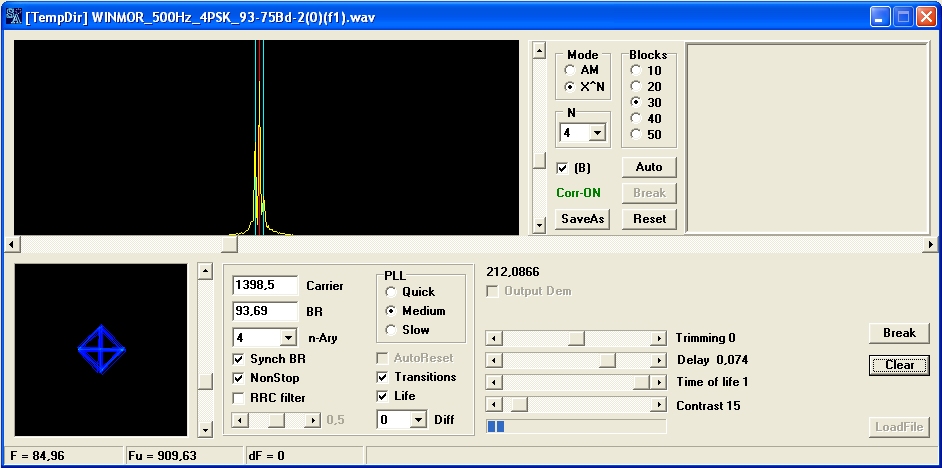

Phase Plane Spectrum (system using QPSK)
