27-TONE "DIGISPEECH" PSK

WAVEFORM by G3PLX

(27-TONE 44.44 Bd QPSK)

FFT-SPECTRA

---

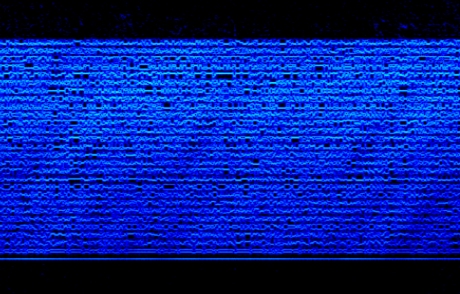

• FFT-spectrum vs. time, frequency and signal intensity (recorded in wrong sideband!)

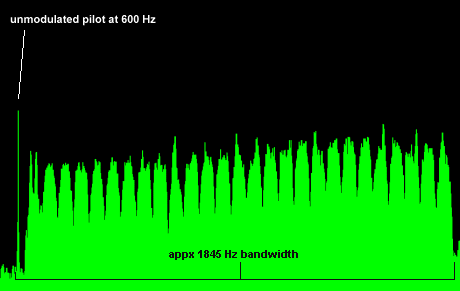

• FFT-Spectrum vs. time and signal intensity (recorded in wrong sideband!)

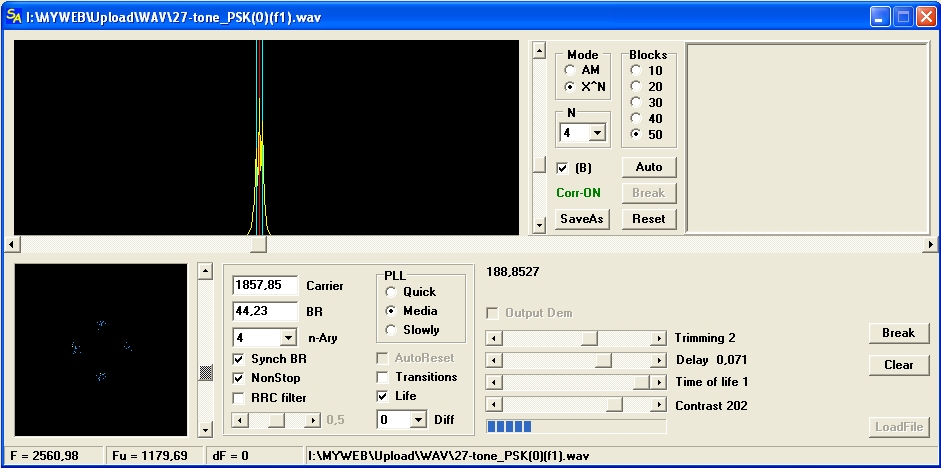

• Phase Plane Spectrum



---
