CLOVER-2000 / XCLOVER WAVEFORM

(8x 62.5 Bd PSM)

FFT-SPECTRA

---

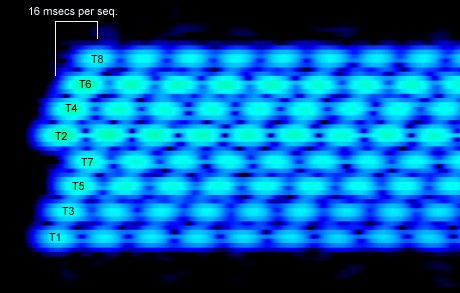

• FFT-Spectrum versus time and frequency

Data is not sent in direct frequency order!
The following tone sequence is used to send data across the circuit:
tone 1 / tone 5 / tone 2 / tone 6 / tone 3 / tone 7 / tone 4 / tone 8
(timing of the pulses is indicated by T1 - T8 below)

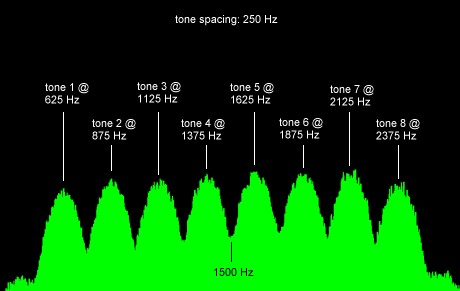

• FFT-Spectrum versus frequency and signal intensity

• Phase Plane spectrum of an 8P2A-signal

• Phase Plane spectrum of an 8PSM-signal

• Phase Plane spectrum of a QPSM-signal

• Phase Plane spectrum of a BPSM-signal

---
