RUSSIAN 128-TONE
OFDM WAVEFORM WITH 6 kHz BW
(2 x 64 carriers with 42 Bd)
FFT-SPECTRA
-

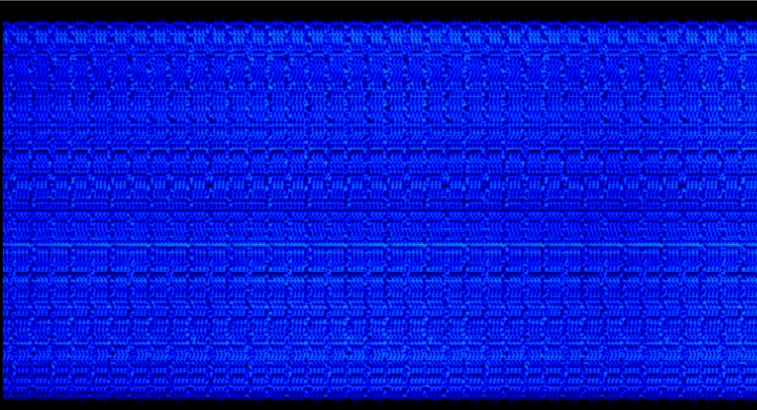

FFT-spectrum vs. time frequency and signal
intensity (idle state)
-

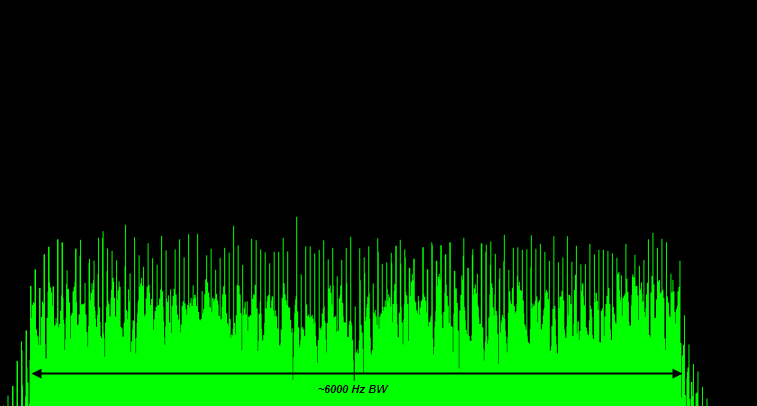

FFT-spectrum vs. time and frequency (idle
state)
-

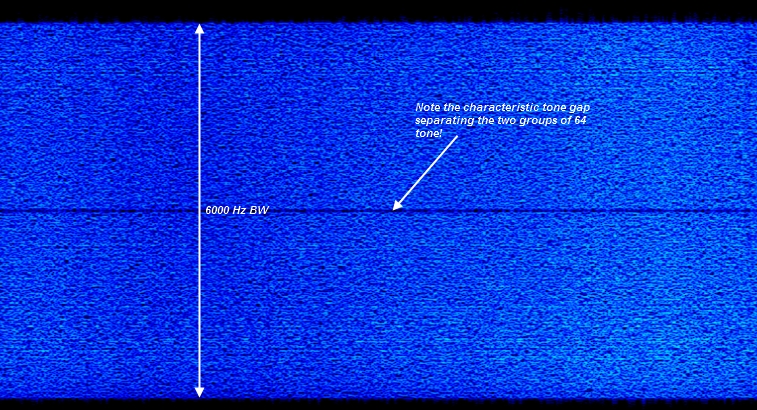

FFT-spectrum vs. time, frequency and signal
intensity (traffic state)
-

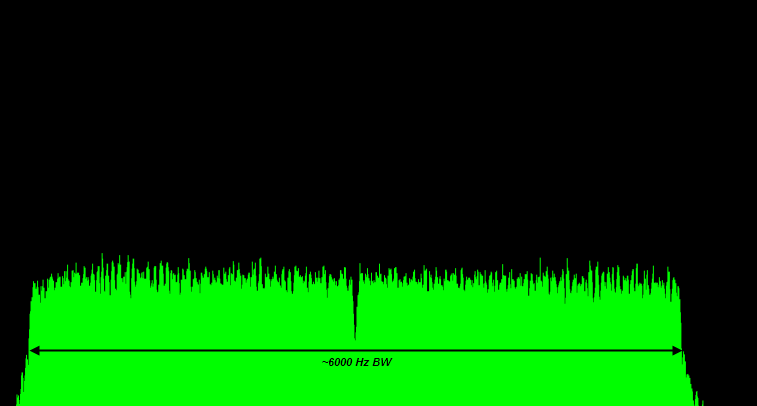

FFT-Spectrum vs. freq. and signal intensity
(traffic state)
-

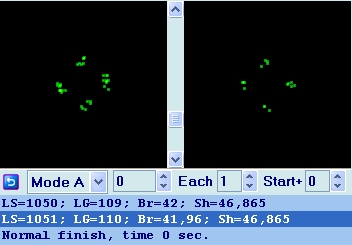

Phase plane spectrum while sending QPSK
modulated traffic
