CODAN 16-TONE PSK

(16x 75 Bd QPSK)

FFT-SPECTRA

---

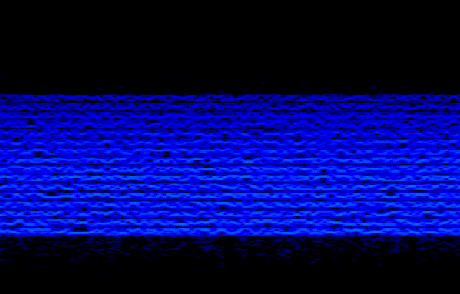

• FFT-Spectrum versus time, frequency and signal intensity

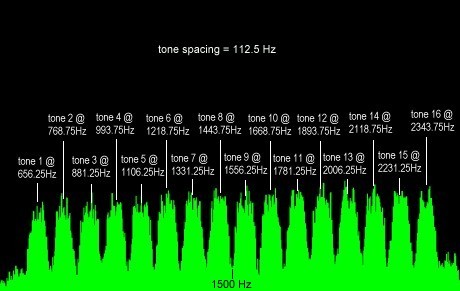

• FFT-Spectrum versus frequency and signal intensity

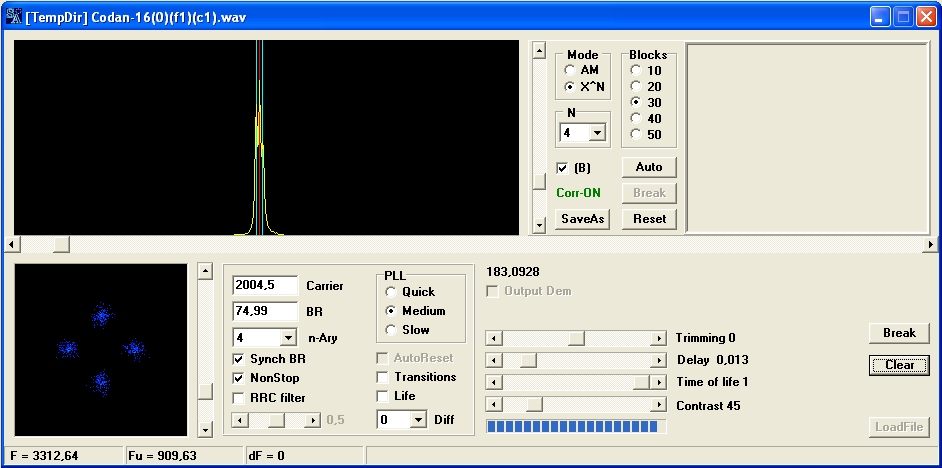

• Phase Plane Spectrum of a single 75 Bd PSK-tone

---
