RUSSIAN 80-tone MFSK 10 Bd

HYBRID MFSK/PSK SYSTEM

(Russian intelligence / probably an experimental mode / active from late 2013)

FFT-SPECTRA

---

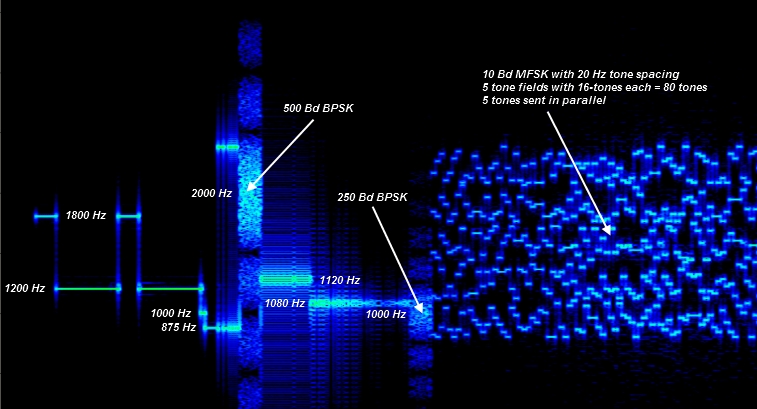

• FFT-Spectrum versus time, frequency and signal intensity (start of message preamble)

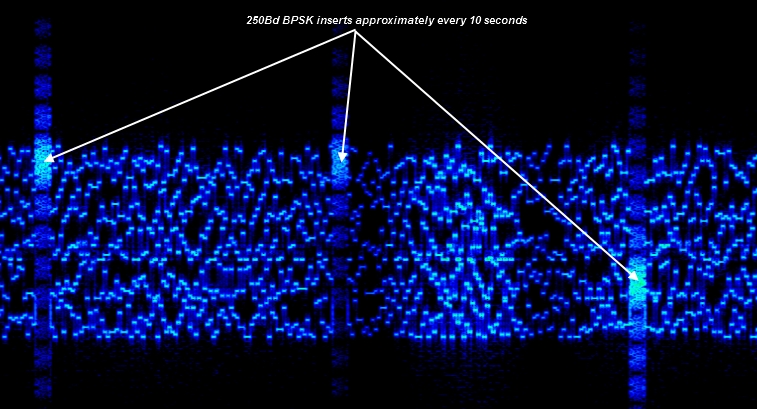

• FFT-Spectrum versus time, frequency and signal intensity (station sending MFSK traffic)

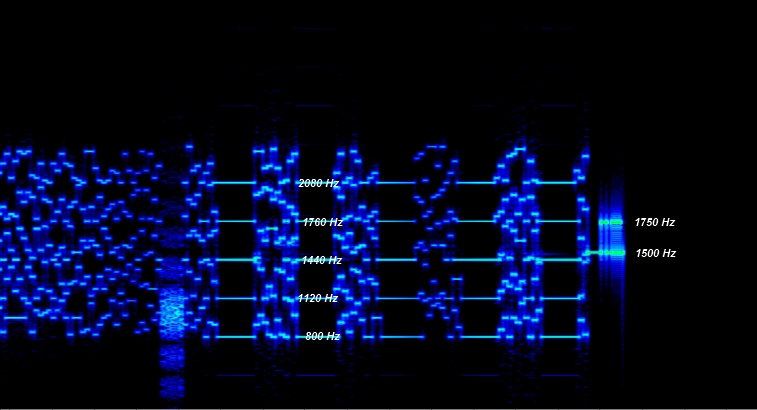

• FFT-Spectrum versus time, frequency and signal intensity (end of traffic sequence)

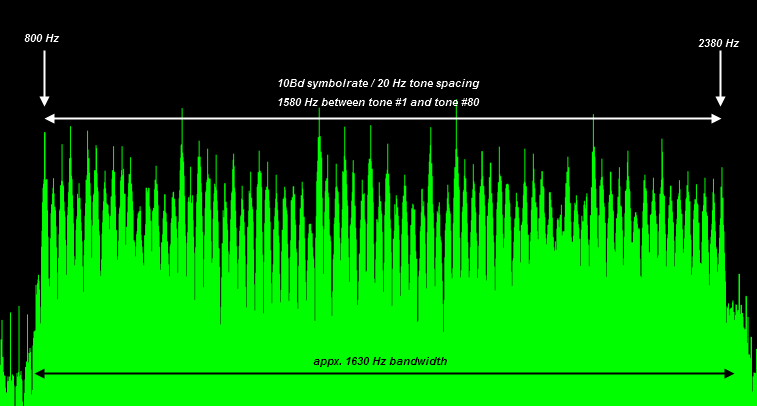

• FFT-Spectrum versus frequency and signal intensity



---
