HYBRID 83.3 Bd MFSK-10 WAVEORM

(FSK-2 + BPSK + MFSK-10 / unidentified user / RUS intelligence)

check out related n x 62.5 Bd Hybrid QPSK waveform as well

FFT SPECTRA

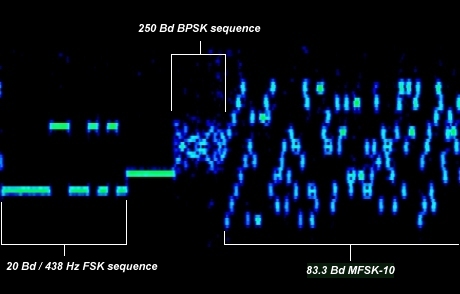

FFT-Spectrum versus time, frequency and signal intensity (closeup of burst intro)

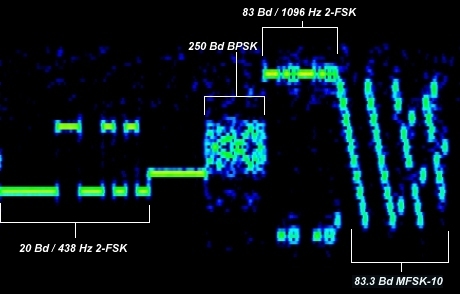

FFT-Spectrum versus frequency and signal intensity (closeup of EOT-burst)

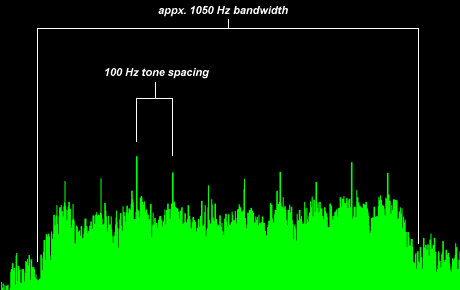

FFT-Spectrum versus frequency and signal intensity)

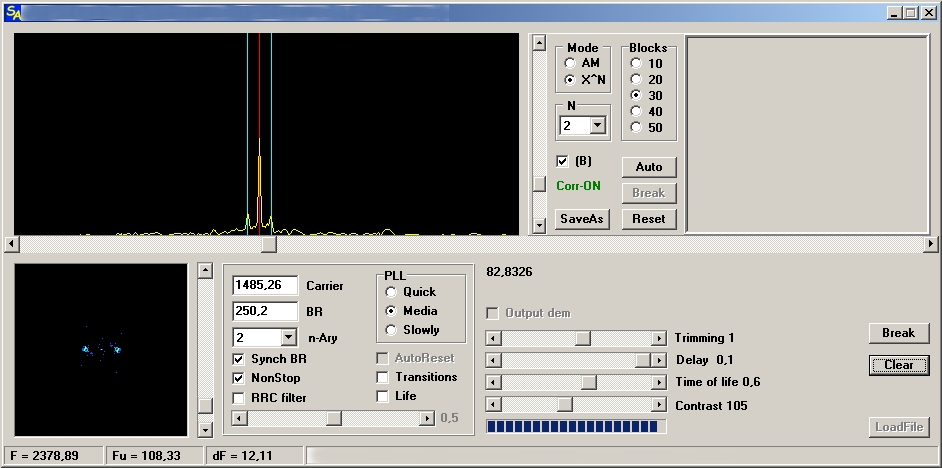

Phase Plane Spectrum of 250Bd BPSK sequence during burst intro
