CIS 50 Bd 136-BIT FRAME

FFT-SPECTRA

---

The FFT-spectra of stations using the CIS Navy 50 Bd 136-BIT mode depend very much on the shift, the
degree of distortion on the signal and the bit pattern being sent across the circuit, so there is no typical FFT-spectrum for these stations. Here are however the two most common shifts that are being used
by the various CIS-NAVY outlets:

---

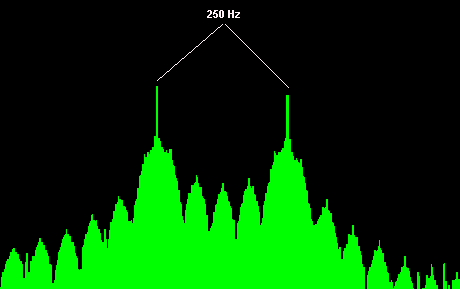

• 50 Bd / 250 Hz

---

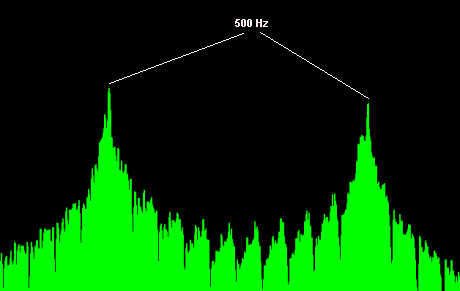

• 50 Bd / 500 Hz



---
