MFSK-4

4-TONE 200 Bd MFSK SYSTEM

ACF

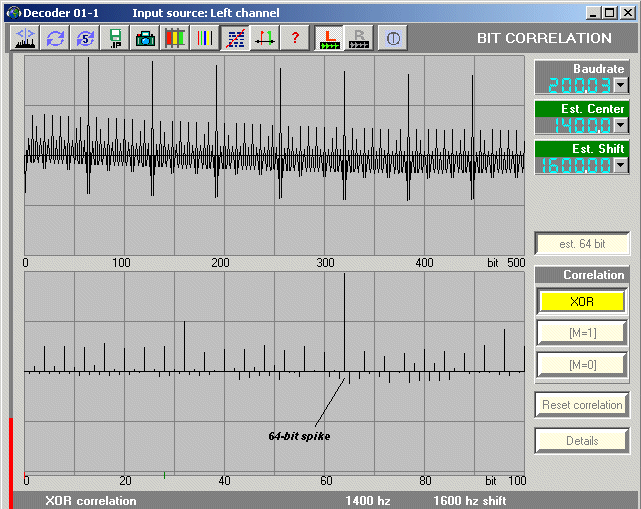

ACF of the system sending a call-up sequence (64-bit spike)

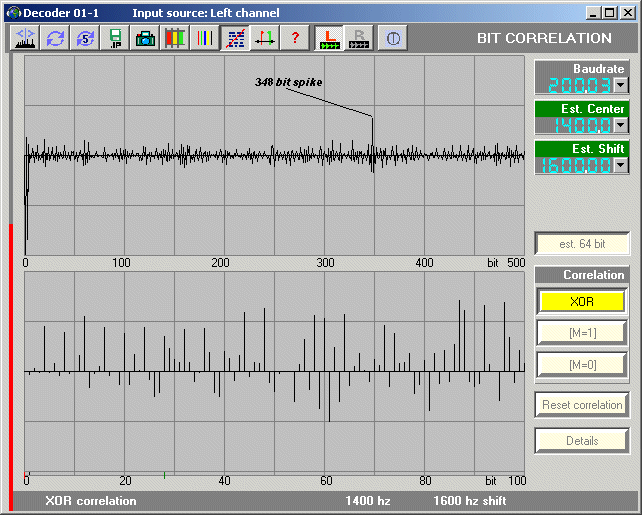

ACF of the system sending message traffic

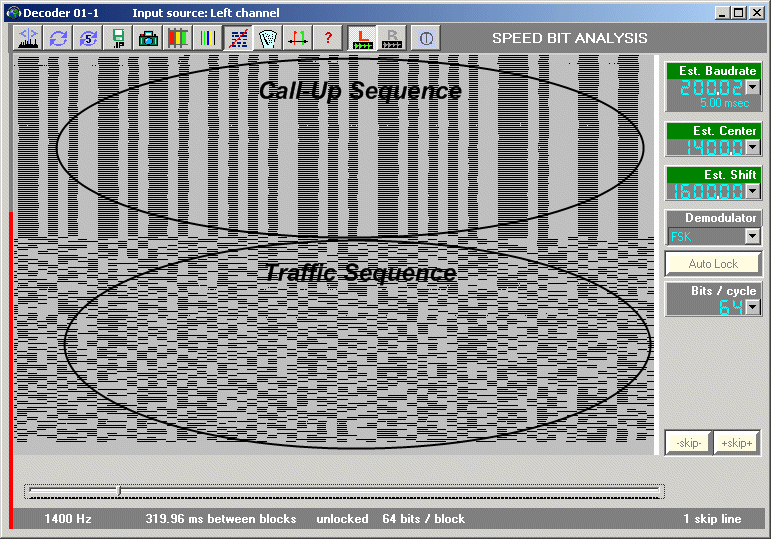

Bit pattern of the system sending a call-up sequence and then sending message traffic (64 bits per line)

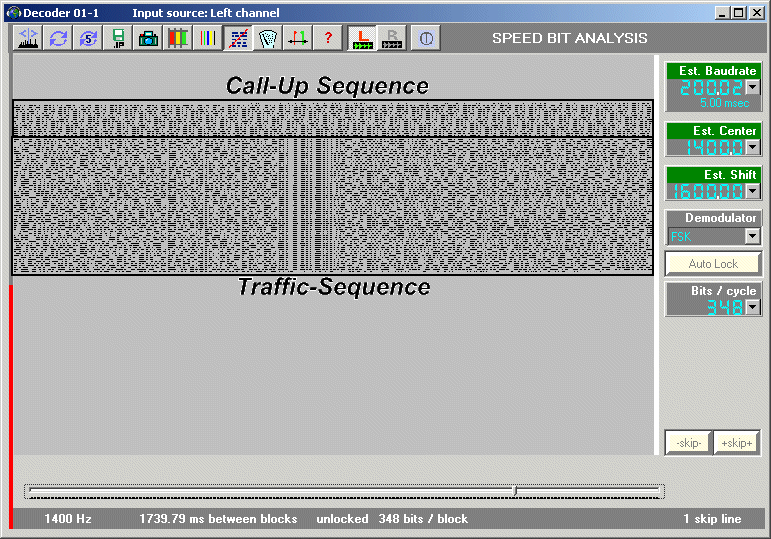

Bit pattern of the system sending a call-up sequence and then sending message traffic (348 bits per line)
