US-INTEL FEC-SYSTEM 108.86 Bd
ACF

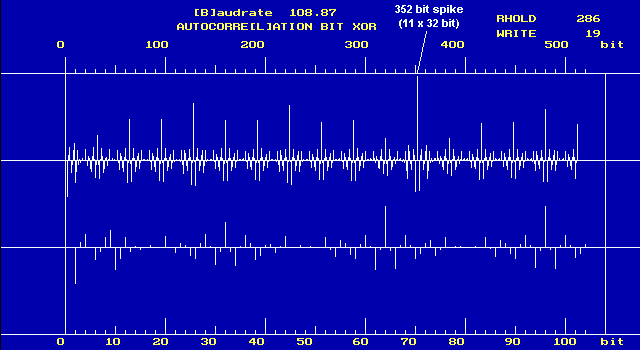

The 108.86 Bd FEC system by one the
US-intelligence agencies, shows a distinctive 352 bit spike during

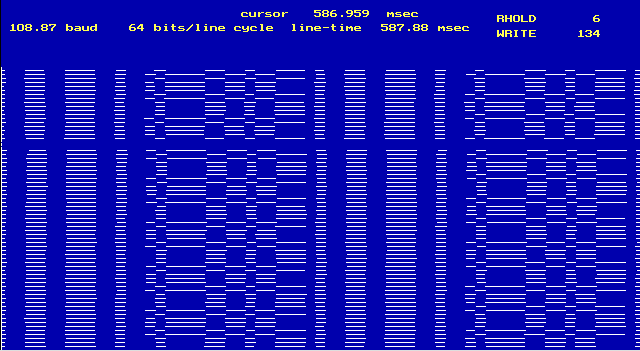

idle condition. Each character seems
to consist of 32 bit.:

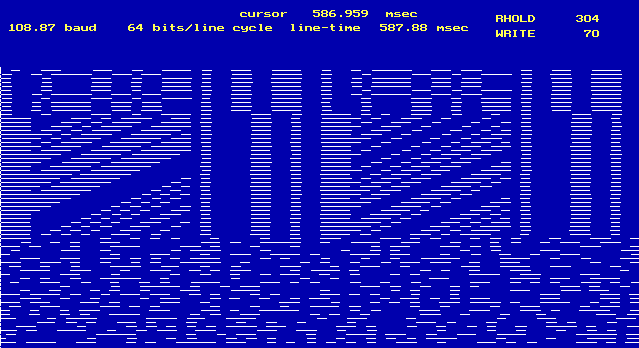

The bits of each character seem to be
spread over a large time span. This bitspread creates a diagonal "slant"
during the changeover from idle to
tfc. condition:

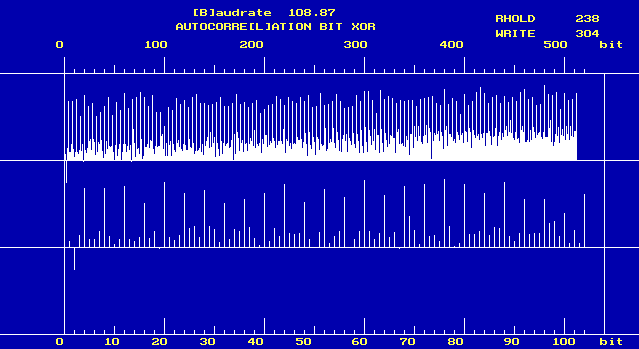

During tfc. condition, the system
shows characteristic spikes every 4 bits:
